Tempo Precision Motor Drive
Tempo Precision Motor Drive is based on our reference motor drive utilising some its most advanced control circuit design, implemented to advance beyond the SG motor drive with which the RG-1 and SG-1 Record Players have already had worldwide praise.
The music we hear when playing vinyl records, in reality, comes from the motor! The motor is the only source of energy in the system. It is this energy that drives the record past the stylus thus making the music we hear.
Any amount of noise or fluctuation in the drive system will adversely impact on the music. Detail, dynamics, timbre, timing and musicality are just some of the qualities that will suffer as a result.
The Tempo takes control of the record player motor and provides it with smoother drive with lower noise and lower distortion. Its internal circuit as with the reference motor drive is uniquely microprocessor based providing a pure sine wave in the digital domain and then converted to analogue via an on-board DAC. Two waveforms are derived, a cosine and a sine, which are then amplified using two bridged amplifiers to power the motor.
The Tempo enhances the musical performance and makes the experience of listening to vinyl on the RG-1 or the SG-1 closer to the original master.
Technical Specifications
Technology
Input Power
Output Drive
Output
Output Adjustment
Output Voltage
LED Illumination Output
THD+N
Circuit Shielding
Motor Link Cable
Power Consumption
Dimensions (D x W x H mm)
Weight
Microprocessor Controlled & Programmable

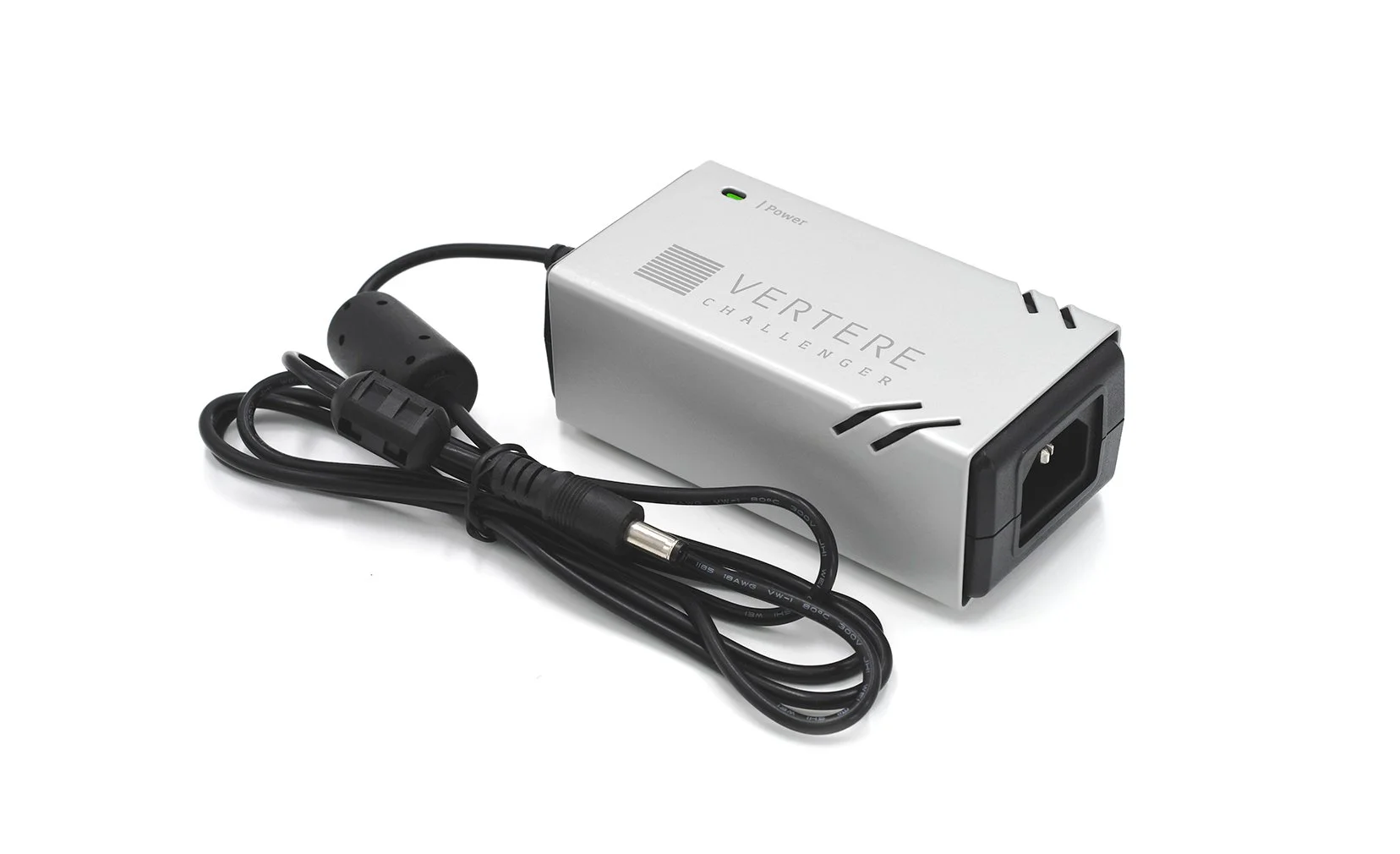

Dedicated DC Power Supply
Bi-phase Bridged Amplifier
Precision Sine & Cosine Waves
33 | 45 Phase Angle & Level
17.5 Vac rms (Two Phases)
12Vdc (Fixed)
<0.1%
Triple Shielded
Dedicated Two Phase + LED Power
<30 Watts Max.
220 x 128 x 58 (including Selector & Feet )
1.3kg
